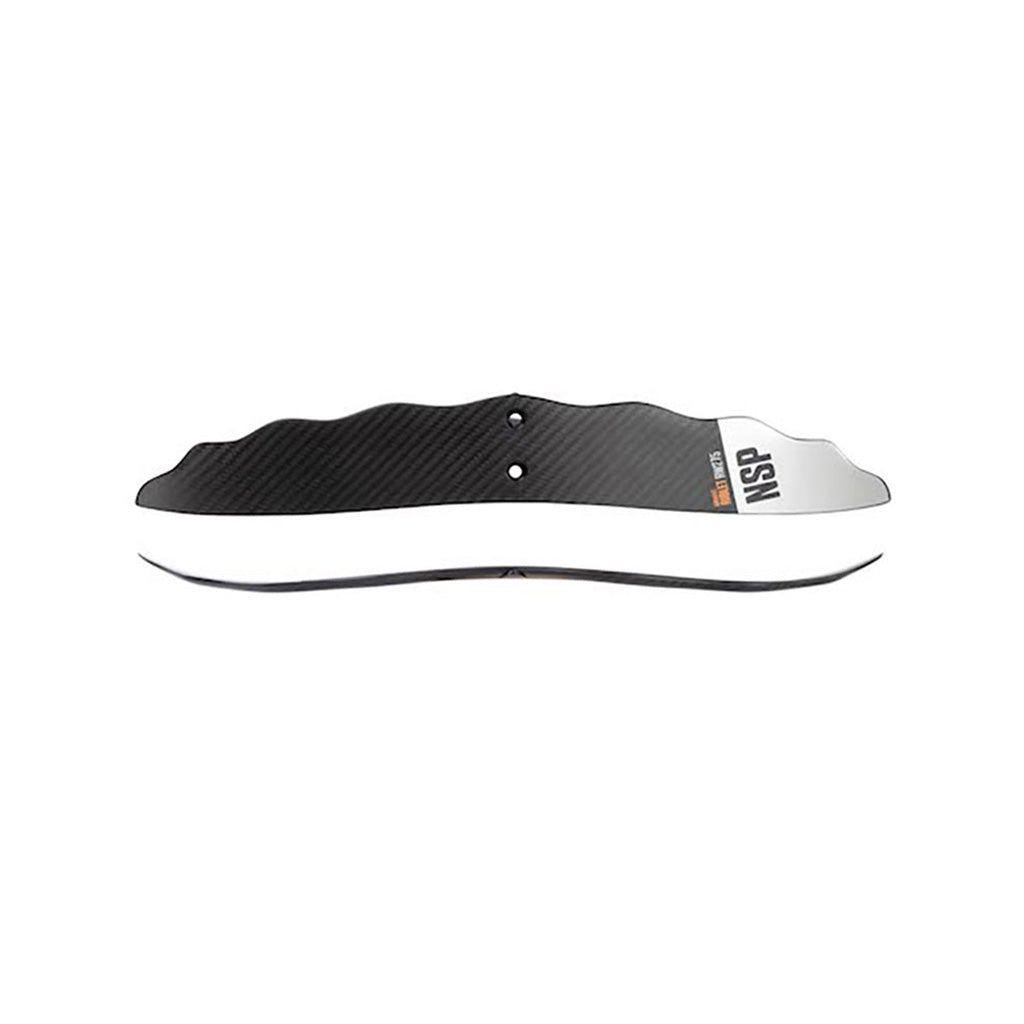

Riblet RW 43 cm - 225 cm2 in bag 2025

The all-new Riblet Rear Wings are available in two sizes 225cm² and 275cm² and are designed to work hand-in-hand with their counterpart NSP Riblet Front Wings.

Thanks to new solid carbon fiber construction, all NSP rear wings are exceptionally rigid, reducing the level of input needed while up on foil.

Who's it for?
Designed as high-aspect stabilizers, Riblet Rear Wings create sustained glide and extreme maneuverability. Pair them with the all new 1025 and 1225 Riblet front wings and you have a high performing hydrofoil that can reach top speeds.

RW Riblet Rear Wing attachment
After plenty of positive rider feedback, and many simulations and test reports we found a top-mount wing attachment solution improved efficiency and thus, we redesigned the NSP fuselage (black), allowing it to carry rear wings on the top.

All Riblet rear wings use M6x20 screws.

NOTE: This new Riblet Rear Wings can only be mounted to the black NSP fuselage.

RIBLET REAR WING TRIM SHIM KIT
These rear wings require the Riblet Shim Kit, which come in a pack of four, ranging from 0-3 degrees, with 0° being the fastest shim in the setup, perfect for high-speed downwind runs.

The 1° shim gives the least amount of drag, increasing speed but requiring some pumping to get up on foil.

The 2° shim offers a great balance between stability and speed. It is the best choice to start out on.

The 3° shim gives the most lift and is the easiest to get up on foil.

DIMENSIONS OF THE RIBLET REAR WING
Width
The wider your rear wing, the more roll stability your setup will exhibit. Winglets or anhedral/dihedral shapes will aid in directional stability, fighting yaw. But those variations will affect the roll stability less than downright width.

Chord
The more chord your rear wing features (leading edge to trailing edge), the more pitch stability you will have. Interestingly, fewer wingspan and narrower chords will create a more responsive foiling setup. make for a faster reaction in their roll and pitch directions.
