The Cabrinha Fusion H-Series Kit is a complete hydrofoil package for foilers who prioritise efficient glide and a wide speed range across disciplines.

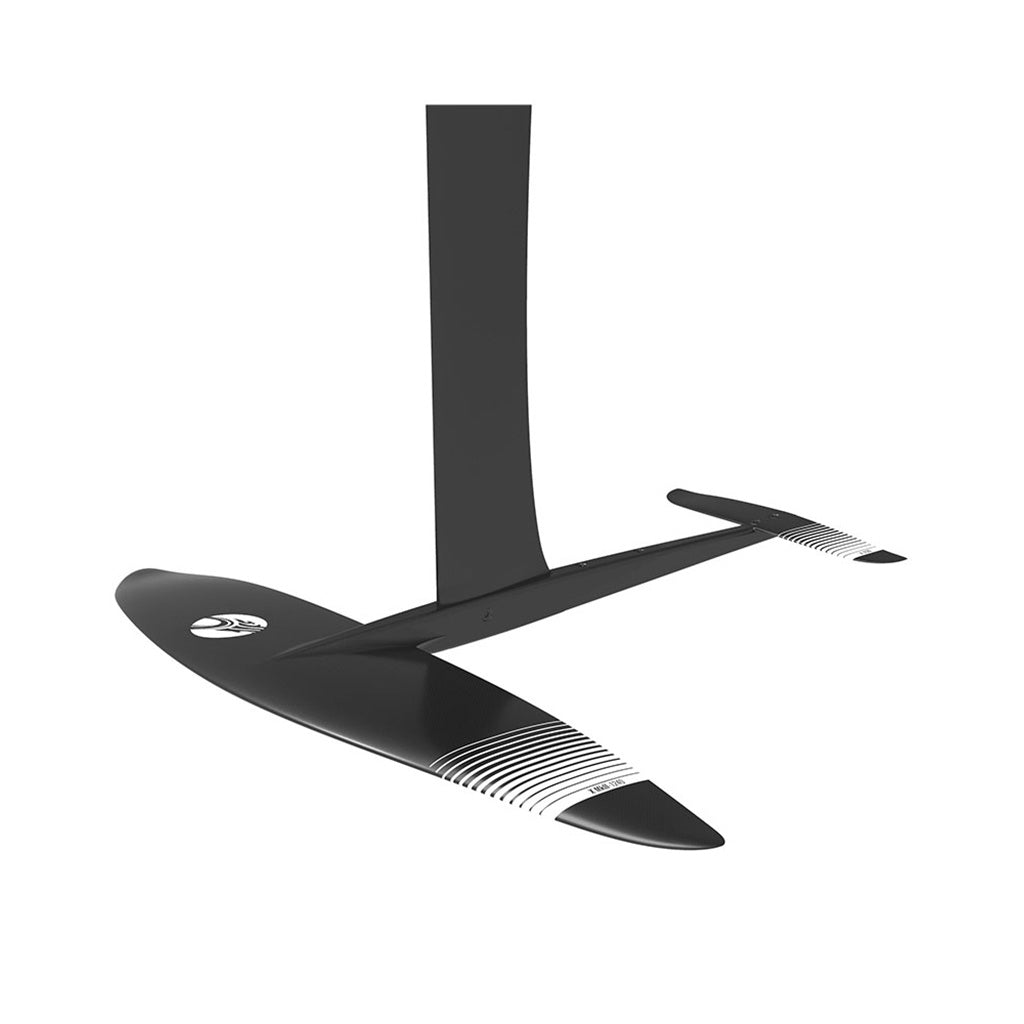

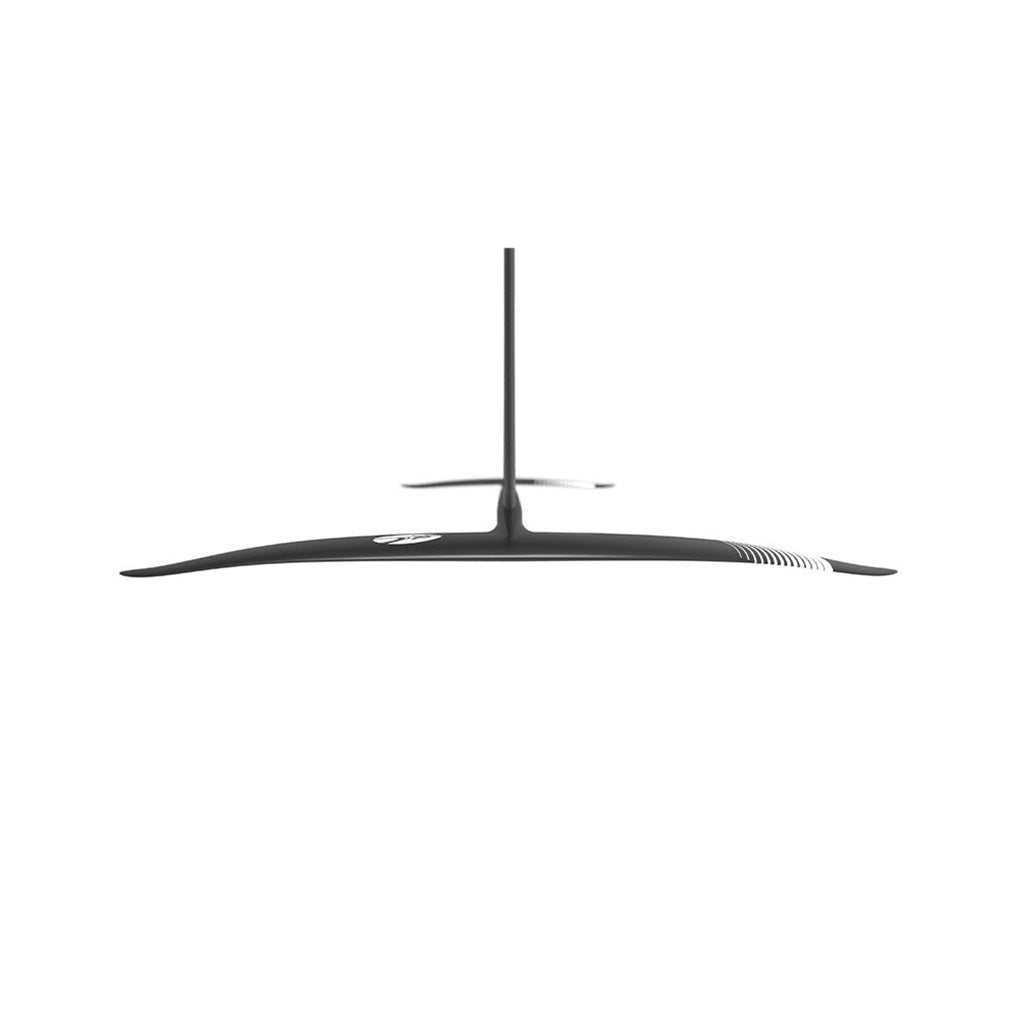

The kit includes an H-Series MKII front wing, a V-Series stabilizer, a Fusion fuselage, a screw set, a T-nut train and a Torx tool, while the mast is chosen separately. The H-Series wing is drawn with a high aspect ratio and a lean profile that delivers extra top speed and ultra-efficient glide. The design draws on a collaboration with Sintef and water testing in one of the biggest tanks in Europe, and the refined tip shape lets the foil breach and re-enter the water without cavitation, supporting progressive riding and radical manoeuvres. Both wing and stabilizer are made from pre-preg carbon with a PMI core, the stabilizer is single-molded, and a brass barrel nut reinforces the wing-to-mast connection with extra torsional stiffness. The fuselage is hollow to save weight and features insulated mounting surfaces and helicoils for durability.
- Front wing: H-Series MKII with high aspect ratio in pre-preg carbon
- Ultra-efficient glide with a wide speed range
- Developed with Sintef and validated in a large test tank
- Refined tip shape for breach and re-entry without cavitation
- V-Series stabilizer for directional control and stability
- Hollow Fusion fuselage with insulated mounting surfaces and helicoils
- Brass barrel nut for high torsional stiffness
- Torx tool included, mast selected separately
A modular, high-performance kit for kite, wing, prone and surf foiling for riders across multiple levels.
